Product center

always devote to research, develop and manufacture the metal wire stock deeply machining whole set equipment

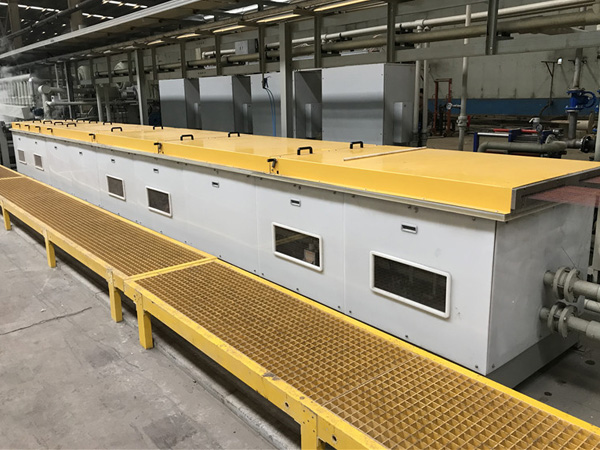

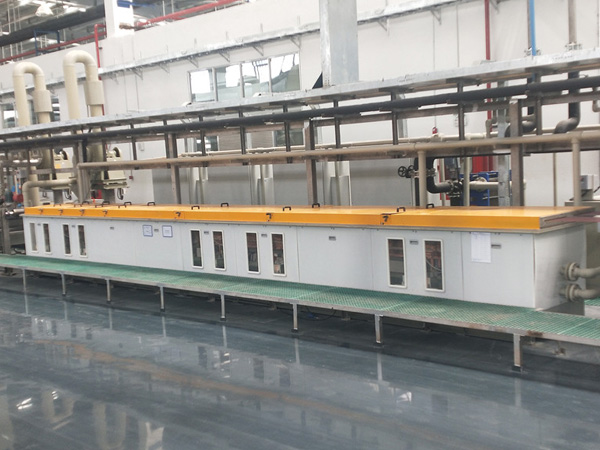

Induction heating equipment

Application scope:

Technical parameters:

· Working frequency range: 15～25KHZ

· Output voltage: 1000V/500V

· Input power supply frequency: 50HZ

· Input voltage: 380～410V

· Control voltage: 220V,50HZ

· Working temperature range: -10ºC～55ºC

· Power range: 30～800KW

Technical parameters:

Material	Alloy steel wire	Alloy steel wire
Specification	Diameter: 0.9-2.6mm	Diameter: 0.9-2.5mm
Quantity	56、60 pieces, double side control	36 pieces, double side A and B control heating
Application	Copper plating wire spread heating	Tyre ring wire tempering heat treatment
Heating temperature	550℃	450℃
Heating DV value	75mm*m/min	500mm*m/min
Bed body profile size	W1200×L10000×H1200	W1200×L18000×H1200
